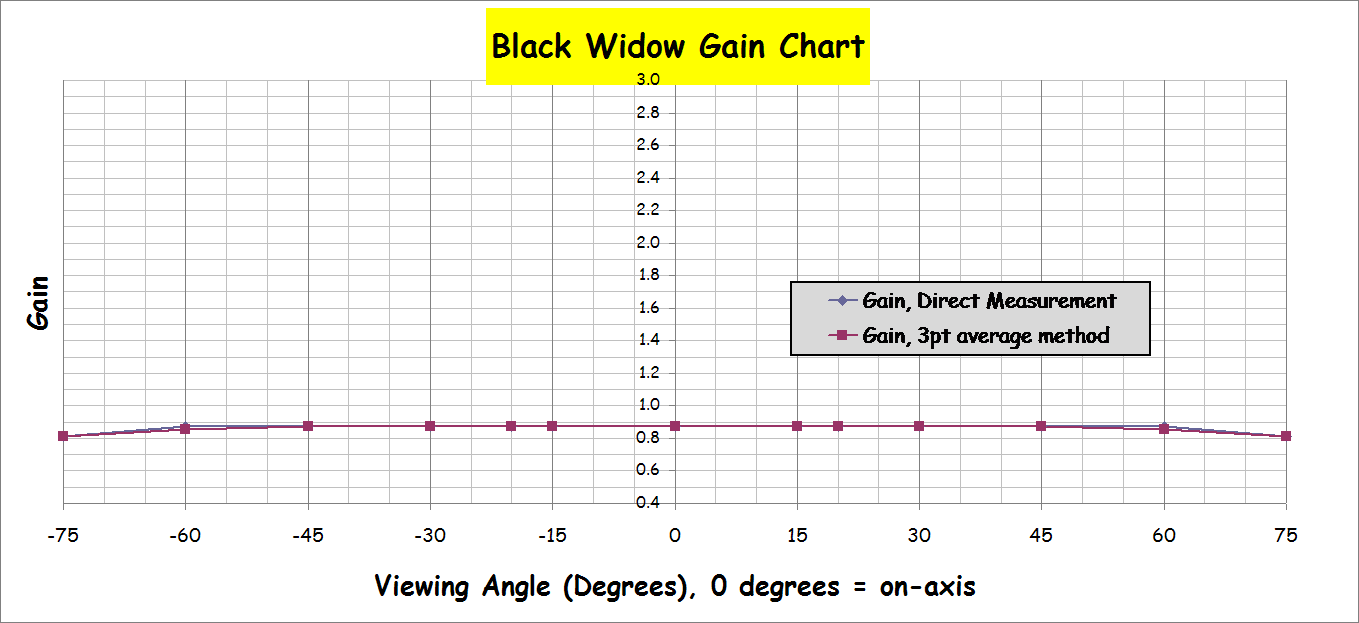

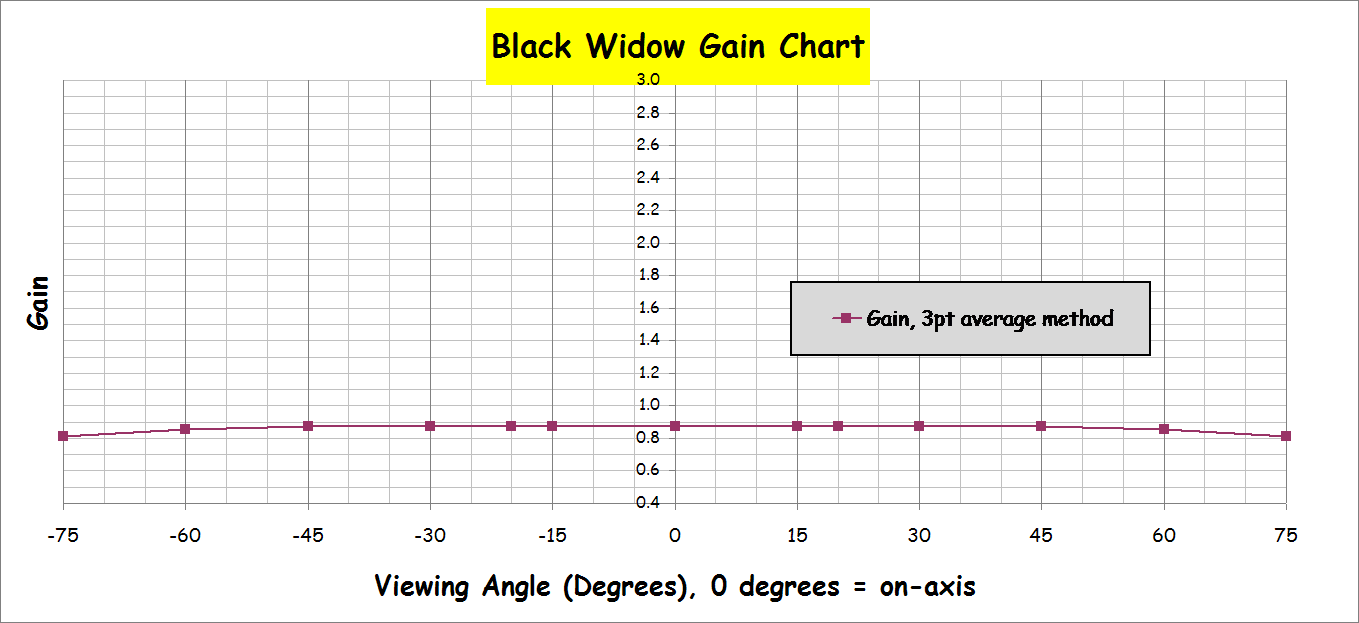

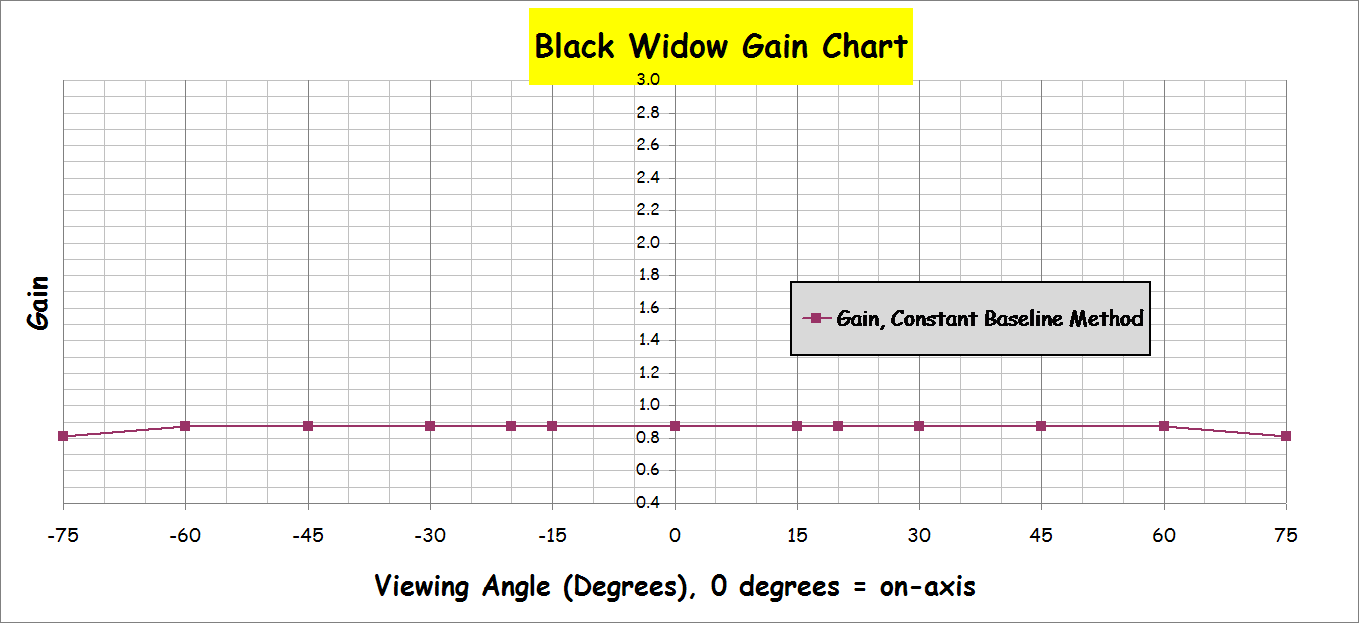

| Angle (Degrees, 0 degrees = on-axis) | MgCO | Sample | Gain | Angle (De | MgCO | Sample | Gain, Direct Measu | Gain, 3pt average method | Gain, Constant Baseline Method | ||||
| 0 | 16.0 | 14.0 | 0.88 | 75 | 16.0 | 13.0 | 0.813 | 0.813 | 0.813 | ||||
| 15 | 16.0 | 14.0 | 0.88 | 60 | 16.0 | 14.0 | 0.875 | 0.854 | 0.875 | ||||
| 20 | 16.0 | 14.0 | 0.88 | 45 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| 30 | 16.0 | 14.0 | 0.88 | 30 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| 45 | 16.0 | 14.0 | 0.88 | 20 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| 60 | 16.0 | 14.0 | 0.88 | 15 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| 75 | 16.0 | 13.0 | 0.81 | 0 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| -15 | 16.0 | 14.0 | 0.88 | -15 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| -20 | 16.0 | 14.0 | 0.88 | -20 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| -30 | 16.0 | 14.0 | 0.88 | -30 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| -45 | 16.0 | 14.0 | 0.88 | -45 | 16.0 | 14.0 | 0.875 | 0.875 | 0.875 | ||||
| -60 | 16.0 | 14.0 | 0.88 | -60 | 16.0 | 14.0 | 0.875 | 0.854 | 0.875 | ||||
| -75 | 16.0 | 13.0 | 0.81 | -75 | 16.0 | 13.0 | 0.813 | 0.813 | 0.813 | ||||
|
|
|||||||||||||
|
|
|||||||||||||
|
|
|||||||||||||
